Home / Products / Turnstiles and speedgates / Tripods

Tripods

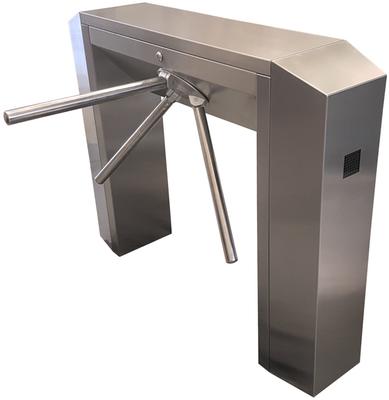

Tristar
Tristar
Tristar
Tristar
Tristar
Tristar

Tristar

All purpose tripod turnstiles with wide columns for additional integration of accessories e.g. card capturing devices, coin acceptors etc.

  • Stainless cabinet with side pictograms
  • Motorized relation
  • Anti-panic drop arms
  • Dimensions:1270x780x1000mm

Technical Specifications

implementation:broušená nerez
width of passage:600 mm
throughput capacity:až 40 osob/min.
dimensions:1270 × 1000 × 780 mm
weight:45 Kg

Download

Question or enquiry about Tristar
Tristar SLIM
Tristar SLIM
Tristar SLIM
Tristar SLIM
Tristar SLIM
Tristar SLIM

Tristar SLIM

Bi-direction motorised tripod turnstile.

  • Stainless cabinet with side pictograms
  • Motorized relation
  • Anti-panic drop arms
  • Dimensions:1050x1000x740mm

Technical Specifications

implementation:broušená nerez
width of passage:600 mm
throughput capacity:až 40 osob/min.
dimensions:1050 × 1000 × 780 mm
weight:45 Kg

Download

Question or enquiry about Tristar SLIM
Aster
Aster
Aster
Aster

Aster

Tripod turnstile of slim and short cabinet.

  • Stainless cabinet with side pictograms
  • Motorized relation
  • Capacity: 40 persons/min
  • Dimensions:510 x 1000 x 300 mm
  • Anti-panic drop arms

Technical Specifications

implementation:broušená nerez
width of passage:600 mm
throughput capacity:až 40 osob/min.
dimensions:510 × 1000 × 300 mm
weight:45 Kg
Question or enquiry about Aster
Crystal
Crystal
Crystal
Crystal

Crystal

Tripod turnstile with round columns and covered back part of cabinet.

  • Stainless cabinet
  • Motorized relation
  • Capacity: 40 persons/min
  • Dimensions:1200 x 280 x 980 mm
  • Anti-panic drop arms

Technical Specifications

implementation:nerezové
width of passage:600 mm
throughput capacity:40 osob/min.
dimensions:1200 × 280 × 980 mm
weight:55 Kg
Question or enquiry about Crystal

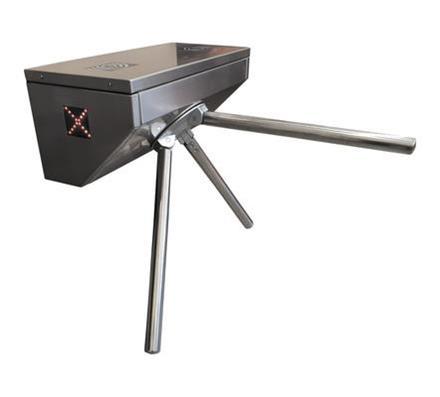

Aktuel
Aktuel

Aktuel

Wall-mounted turnstile.

  • Stainless cabinet
  • Elektromechanical relation
  • Capacity: 40 persons/min
  • Dimensions:610 x 310 x 810 mm
  • Anti-panic drop arms

Technical Specifications

implementation:nerez
width of passage:600 mm
throughput capacity:40 osob/min.
dimensions:610 × 310 × 810 mm
weight:44 Kg
operating temperature:-20°C až +70°C
Question or enquiry about Aktuel
Tristar Duo
Tristar Duo
Tristar Duo
Tristar Duo

Tristar Duo

Double turnstile tripod



  • Stainless cabinet
  • Motorized relation
  • Capacity: 40 + 40 persons/min
  • Dimensions 1270 x 1620 x 1000 mm
  • Anti-panic drop arms

Technical Specifications

implementation:broušená nerez
width of passage:600 mm mm
throughput capacity:až 40 + 40 osob/min.
dimensions:1270 × 1000 × 1620 mm
weight:80 Kg

Download

Question or enquiry about Tristar Duo

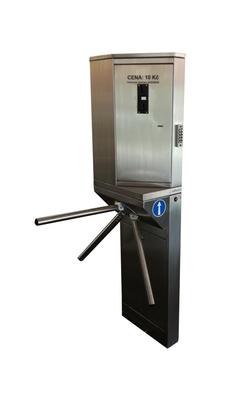

Turnstile with payment machine
Turnstile with payment machine
Turnstile with payment machine
Turnstile with payment machine
Turnstile with payment machine
Turnstile with payment machine

Turnstile with payment machine

Beside complex on-line systems are also manufactured and delivered stand-alone turnstiles with payment machine, eventually ticket printer, which are especially suitable for admission payments to public toilets, showers, restrooms etc.

Acces control system with payment machine

  • Payment with coins, notes, credit cards
  • Receipt printing
  • Value card printing
  • Acces for employees
  • Coin bag with security lock
  • Any kind of turnstile or speed gate

Download

Question or enquiry about Turnstile with payment machine

Selected references

Entrance turnstiles at the entrance to the Strážnice Skanzen
Two rotating turnstiles of the tripod type and two gates are used for control and entry into the area of the open-air museum in South Moravian Strážnice, which is currently being reconstructed.
View
Entry control access system for the academy
The entrance to the Michael Academy in Prague is now controlled by a set of two bidirectional tripod turnstiles and a gate. Student smart cards are used to control access.
View

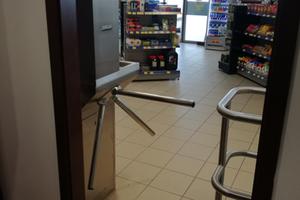

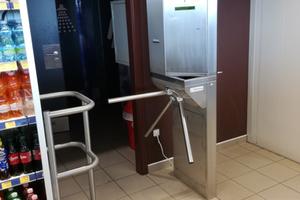

Turnstile with coin-operated turnstile at the entrance to the toilets at the petrol station
A turnstile with an integrated coin dispenser used to charge for toilet entrances at a petrol station near Ostrava in the direction of Poland.
View
Ticketing system with entrance turnstile and automatic ticket office
Elegant solution of the ticket system to the sports hall in Brno - access is protected by an entrance turnstile with a terminal, tickets are then issued by an automatic ticket office.
View
Chip card access system with two turnstiles
The external entrance to the Schaeffler Production company premises was equipped with two turnstiles and an entrance gate in all-stainless steel and durable design
View
Double turnstile for checking tickets at the swimming pool
An entrance turnstile with a ticket control terminal in the swimming pool area solved the problem of controlling customer entrances without the need for employees
View
Turnstiles for employees to access the ČSOB building
The entrance to the offices of ČSOB Bank is protected by an access system consisting of several all-stainless steel turnstiles with LED panels and a glass entrance gate.
View
Three types of entrance turnstiles for access to the company premises
We installed a rotary turnstile, an entrance gate, a tripod entrance turnstile and a turnstile door in the Morava Brands company for simple access control.
View
Electronic access system with turnstiles and gate
A narrow tripod turnstile at the entrance combined with an entrance gate for barrier-free access to the premises of the Těšín Museum, both supplemented by simple LED panels and tapes.
View

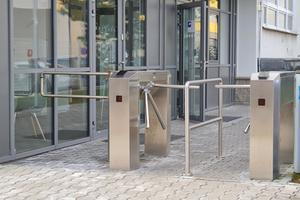

Two-way double turnstile to enter the company premises
Outdoor implementation of our Tristar Duo tripod entrance turnstile in all-stainless steel and with an access system for employees equipped with a card reader
View
